The VX 820 Communications Base

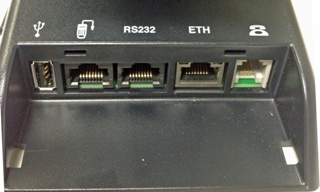

The Ports on the VX 820 Communications Base



Icon

Description


Use for the dial communications cable.

ETH

Use for the Ethernet communications cable.


DO NOT USE


Use for the power adaptor cable.

RS232

Use to connect the External PINpad.






Use to connect the PINpad.
