Hardware setup

Remove the protective film (if applicable)

If your terminal has a protective film covering the display screen, peel the film off.

Hint:   Peel from the top right to the bottom left corner.

Install the receipt paper

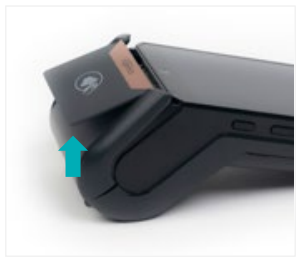

  1. Lift the printer latch up to release the printer cover, then pull the cover back to expose the paper compartment.
  1. Insert the receipt paper roll into the paper compartment with the loose end unrolling away from the terminal
  1. Unroll enough paper to extend at least one inch (2.5 cm) past the top of the printer cover.

Note:    If the paper is installed backward, your printouts will be blank.





  1. Close the printer cover and press down to snap it back into place so that the extended paper is held securely.

  • Hardware setup is complete.
  1. Go to the next step: Charge the battery.
