Use this handheld, all-in-one terminal and PIN pad to process transactions at the point of sale (POS).
Both you and your customer will enter information and respond to prompts on the terminal. When directed on screen, pass the terminal to the customer. When the customer has finished, they will pass the terminal back to you as directed on screen. Respond to the prompts to complete the transaction.
Note: Moneris offers an optional external PIN pad to integrate with the V400c terminal. Refer to Optional External P400 PIN pad for more information.
|

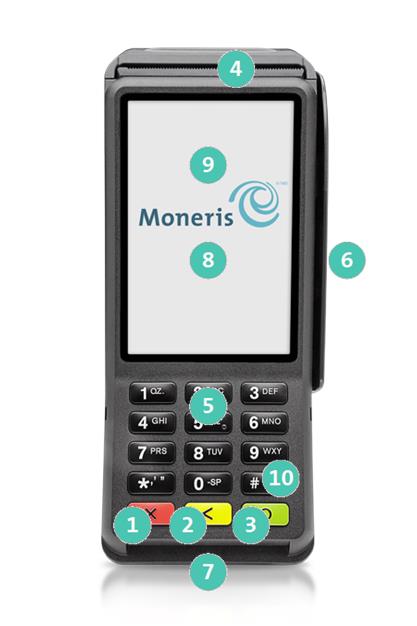

Label |
Terminal key or hardware |
Function |
|
1 |
Red key (
|
Cancel a transaction or function. |
|
2 |
Yellow key (
|
Delete one or more characters in a data field. |
|
3 |
Green key (
|
Accept or submit data. Say OK to a menu selection. |
|
4 |
Printer |
Print receipts and reports. |
|
5 |
Keypad |
Enter numerical data. To enter a period or other punctuation, use the punctuation key |
|
6 |
Magnetic stripe reader |
Read card information when a card is swiped. |
|
7 |
Chip reader |
Read card information when a chip card is inserted. |
|
8 |
Display screen |
Displays information. |
|
9 |
Contactless reader (internal) |
Read card information when a card is tapped. |
|
10 |
Pound key (
|
Go to the Main menu. |
)
)
)
)
