Hardware setup

Remove the protective film (if applicable)

If your terminal has a protective film covering the display screen, peel the film off.

Hint:   Peel from the top right to the bottom left corner.

Install the paper roll





1.      Lift the printer latch up, and then pull back to open the lid and expose the paper well.

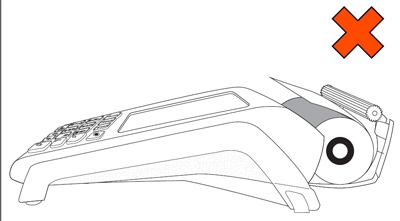

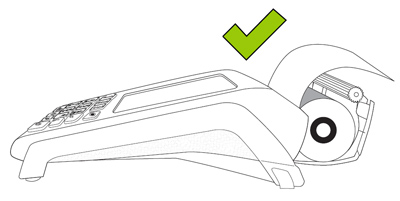

2.      Insert the paper roll into the paper well with the loose end unrolling from the top of the roll toward the back of the terminal.

Note:  If the paper is installed backward, your printouts will be blank.

3.      Unroll enough paper to extend at least one inch (2.5 cm) past the back of the terminal.



4.      Close the lid, and press down to snap it back into place so that the extended paper is pressed securely against the closed lid and the faceplate.

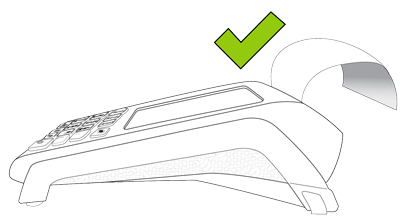

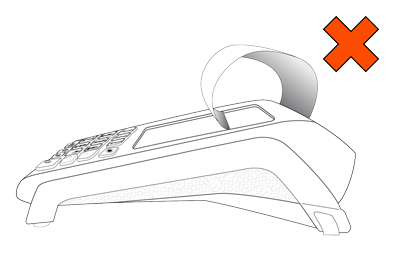

Note: The paper should unroll back over the top of the printer, not unroll over the faceplate.

Note: To advance the paper from the printer when the lid is closed, you must press and hold down the paper feed key when the terminal is powered on. DO NOT attempt to manually advance the paper by pulling it as this will damage the printer.

5.      Power on the terminal by pressing and holding the green key until the screen illuminates. Once powered on, proceed to Charging the battery .

6.      Your hardware setup is complete. Go to Software setup.
