Charging the battery

1.      Charge the terminal’s internal battery for 4 hours using one of the following methods:

§        Optional charge-only base (see below)

§        Direct-to-terminal charge cable (see below).

Recommendations: Always plug the power cable into the power source last to avoid power surges. Use a power bar equipped with surge protection where possible. Do not use the power cable from your existing terminal, as it may damage your new terminal.

Important:  You must use the exact power adaptor and cables provided by Moneris to work with the Moneris Move/5000 terminal and base. Failure to do so may affect the operability of, or cause damage to, the equipment.

Use the charge-only base

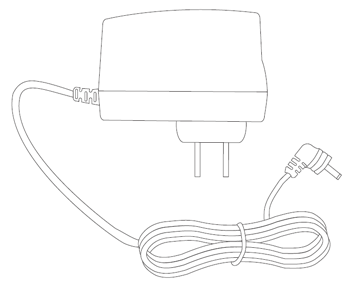

  1. Locate the base's power cable.

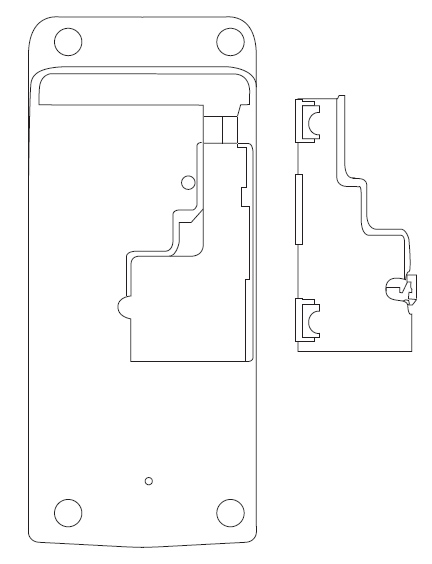

  1. Turn the base over and open the panel cover on the underside of the base.

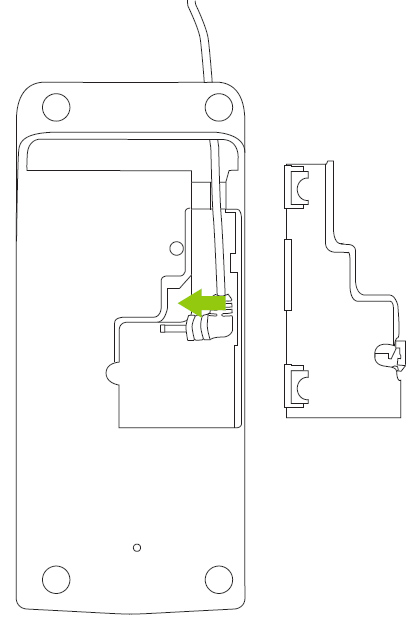

  1. Insert the power cable connector into the small circular port (power) in the underside of the base.

  2. Replace the panel cover on the bottom of the base, and turn it back over.

  3. Plug the other end of the cable into a working power outlet.

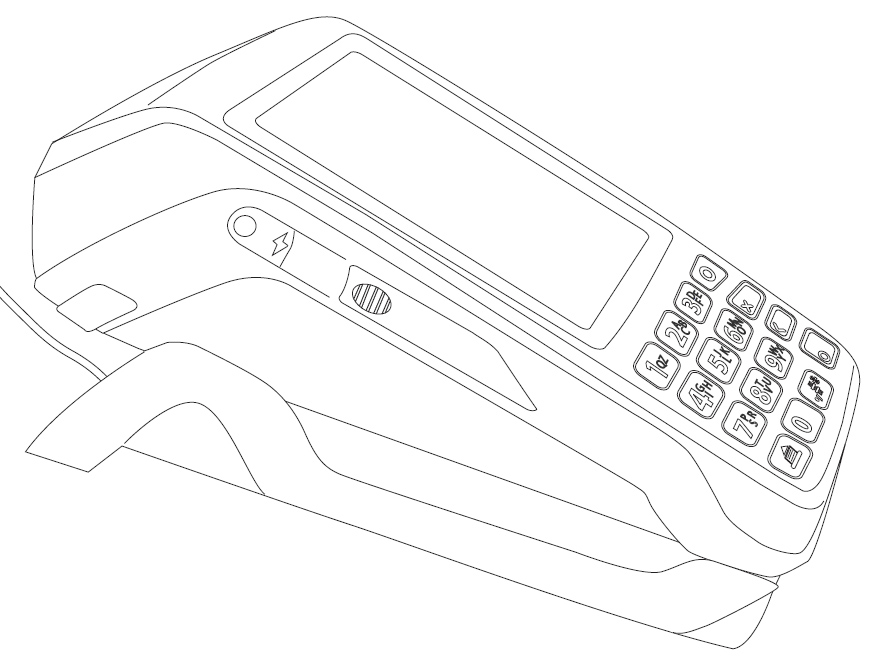

  1. Dock the terminal on the base. Ensure that the contacts slot on the underside of the terminal fits securely over the leads prong on the base.

  1. When the terminal powers on, proceed to step 2below.



Using the direct-to-terminal charge cable

  1. Locate the direct-to-terminal charge cable.

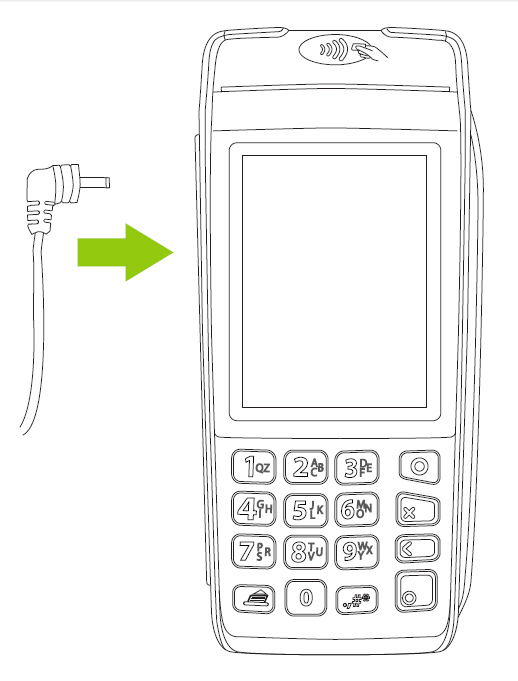

  1. Locate the power port on the left side of the terminal (marked with the power symbol ().



  1. Insert the direct-to-terminal cable connector into the port.

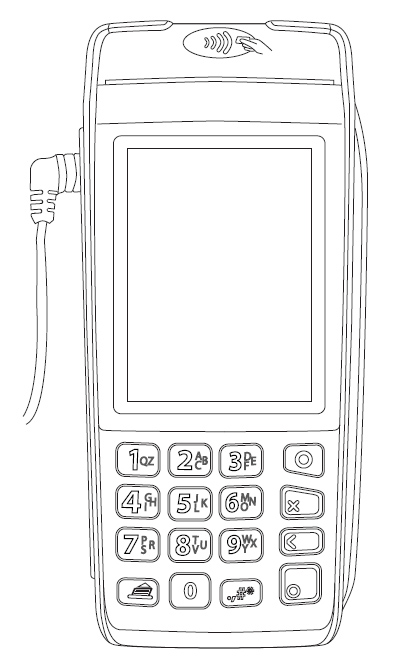

  1. Plug the other end of the cable into a working power outlet.

  1. When the terminal powers on, proceed to step 2 below.



2.      Wait for the “Welcome! Let’s get you payment ready” prompt to appear. (This should take about 60 seconds.)

3.      Locate the Battery icon appearing at the top of the terminal screen in the status bar:

4.      Wait for the Battery icon to display the "lightning bolt" icon. This indicates that the battery is charging and may take several minutes to appear.

Note:     The "lightning bolt" portion of the icon displays only if the terminal is connected to an external power source.

Terminal IS CONNECTED to external power source

Terminal IS NOT CONNECTED to external power source



CHARGE LEVEL: 100%


CHARGE LEVEL: 100%

5.      Keep the direct-to-terminal charge cable (or the optional base charge cable) connected while continuing the rest of the setup procedures.

6.      Your hardware setup is complete. Go to Software setup.
