Setting Up the Terminal in Semi-Integrated Mode

Follow these steps to set up and configure the Moneris iCT250 terminal to work as a semi-integrated POS device with your electronic cash register (ECR).

1.  Refer to "Getting Started," and follow the steps to begin installing your terminal.

2.  Note that Moneris provides the following communications cables:

* This cable may also be used to connect the terminal to your ECR via Ethernet networking.

3.  Determine the overview steps which you must follow to set up your terminal to work as a semi-integrated device:

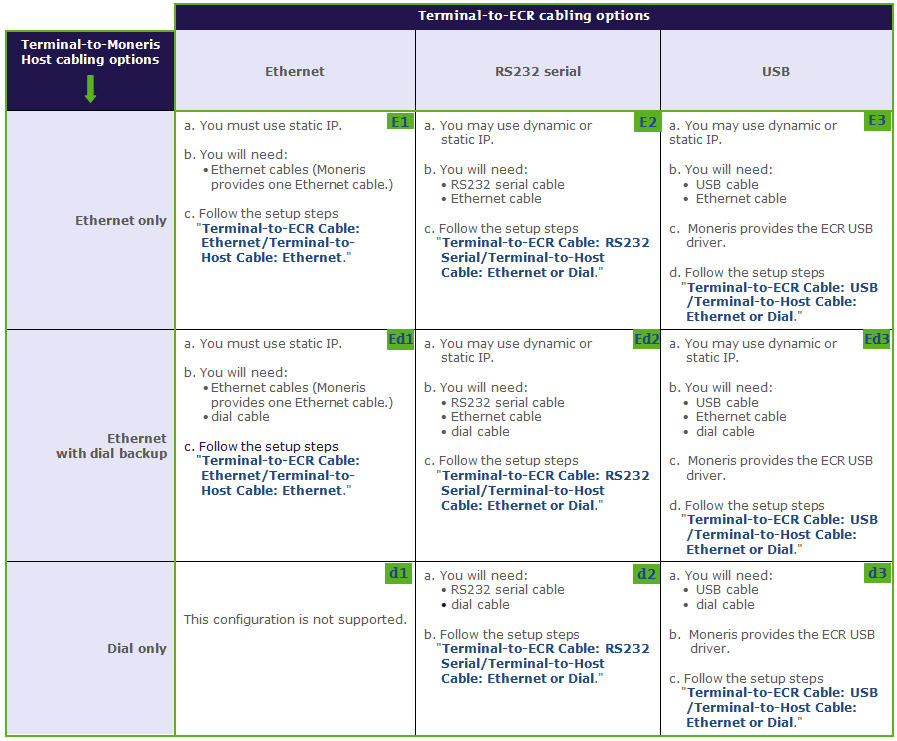

a.  Refer to one option in the "Terminal-to-Moneris Host" cabling column (see below), and then cross-reference it with one option from the "Terminal-to-ECR" cabling row.

Example: To use Ethernet with dial backup cabling for terminal-to-Moneris Host communication with USB cabling for terminal-to-ECR communication, you must follow the steps in box Ed3.

 b.  Once you have read the information pertaining to the configuration you have opted to use, click on the referenced procedure.
