The LED on the Base

The green LED on the communications base and the charge-only base indicates the power status of the base . On the communications base, it also indicates the ready-to-communicate status between the base and the handheld terminals , and the ready-to-communicate status between the base and the Moneris Host .

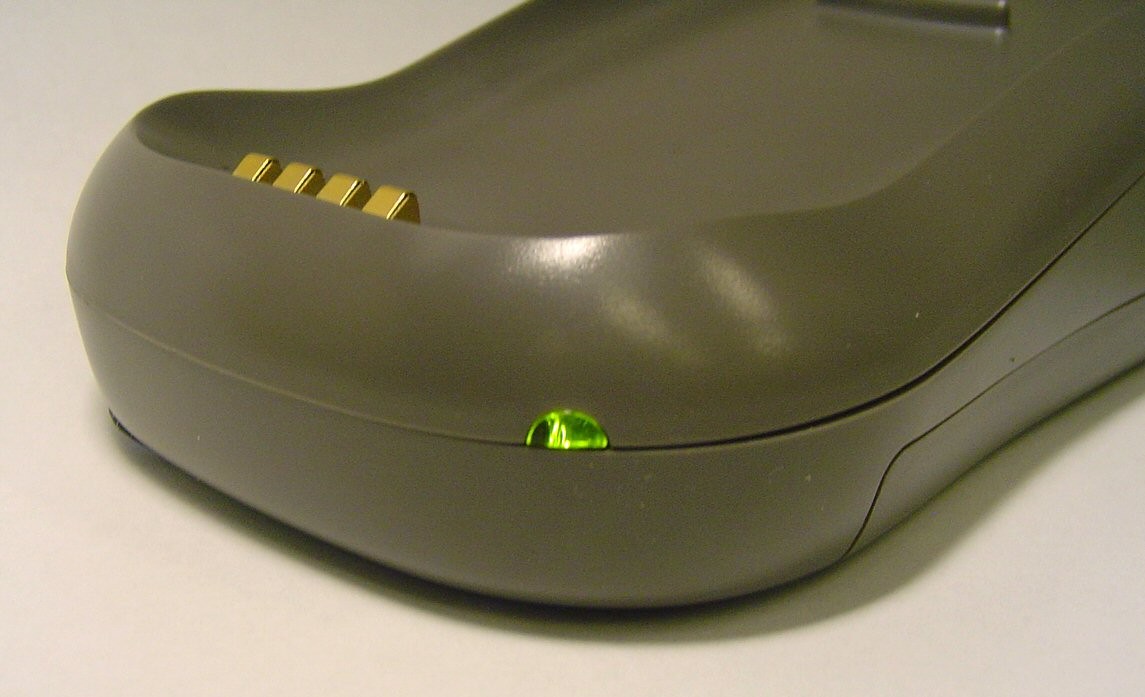

Green LED on the Base



LED States on the Communications Base

LED STATE

Ethernet Communications

Dial Communications

OFF

The communications base is powered off.

The communications base is powered off.

FLASHING QUICKLY
(2 times per second)

The base is powered on but cannot find any registered handhelds.

For example:
- there are no handhelds registered to the base OR
- at least one handheld is registered, but is not powered on OR
- at least one handheld is registered, but is out of range of the base.

The base is powered on but cannot find the registered handheld.

For example:
- the handheld is not registered to the base OR
- the handheld is registered, but is not powered on OR
- the handheld is registered, but is out of range of the base.

FLASHING SLOWLY
(once every 2 seconds)

n/a

The handheld is:
- registered to the base and
- powered on and
- within range of the base.
AND
The base is:
- powered on but
- not currently communicating with the Moneris Host.

CONSTANTLY ON

At least one handheld is:
- registered to the base and
- powered on and
- within range of the base.
AND
The base is:
- powered on and
- has found at least one registered handheld and
- ready to communicate OR is communicating with the Moneris Host.

OR

A handheld is sitting on the base.

The handheld is:
- registered to the base and
- powered on and
- within range of the base.
AND
The base is:
- powered on and
- communicating with the Moneris Host.

OR

The handheld is sitting on the base.
