The Communications Base

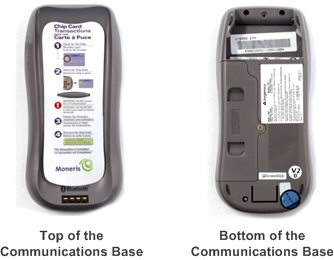

The communications base connects up to five (5) terminals via wireless communication to the Moneris Host via Ethernet and dial.  The base is also be used to charge the terminal.

If you have a number of 8200 handheld terminals, they can communicate with the Moneris Host through one communications base, but each terminal will need a charge-only base to charge the battery when the handheld is not in use.





The Ports on the Communications Base

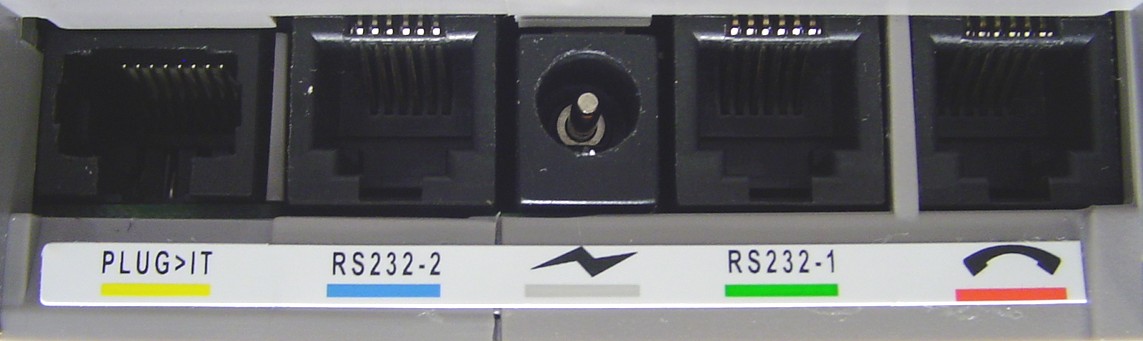

It has a green LED on the front, right corner and 5 connection ports on its back:



PLUG>IT

with a YELLOW bar (for Ethernet Communications )

RS232-2

with a BLUE bar (for future use)


with a GREY bar ( power connection )

RS232-1

with a GREEN bar (for future use)


with a RED bar (for Dial Communications )
