IMPORTANT: Only one contactless reader at a time can be connected to a 6200 terminal. Use only the power adaptor cable that came with the contactless reader.
1. Secure the reader into its stand-base ...

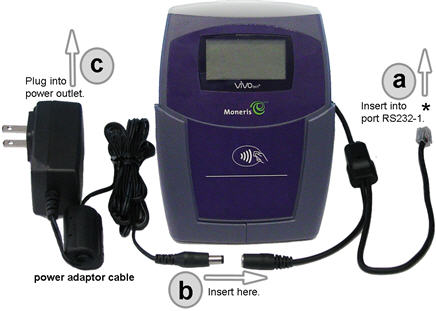

2. Connect the contactless reader to a powered HiSpeed 6200 terminal:
a. Insert the Y-cable connector into the
terminal’s base port RS232-1.
(If a PINpad is connected, use port RS232-2.)
b. Connect the power adaptor cable to the Y-cable.
c. Plug the power adaptor cable into a power
outlet.
The reader beeps twice as it powers up.
3. Confirm the status of the reader: It should display either the "Firmware Version" number or the "Please Present Card" prompt.
4. Enable the Contactless Reader parameter on the 6200 terminal ...
5. If desired, enable/disable the generic Contactless logo, which if enabled appears on contactless transaction receipts.
* If a PINpad is also connected, ensure that the contactless reader is connected to port RS232-2 and is enabled for COM2.
