The Vx810 Communications Base


The Ports on the Vx810 Communications Base

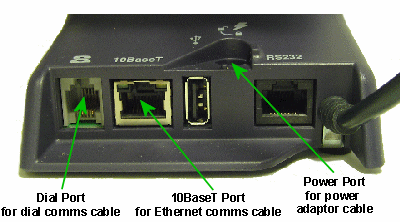

The Duet communications base has 5 (five) ports:

Icon

Description


Use for the dial communications cable.

10BaseT

Use for the Ethernet communications cable.


DO NOT USE


Use for the power adaptor cable.

RS232





Use for the external PINpad.
