If your terminal has a protective film covering the display screen, peel the film off.
Hint: Peel from the top right to the bottom left corner.
|
Lift the printer latch up, and then pull back to open the lid and expose the paper well. |
|

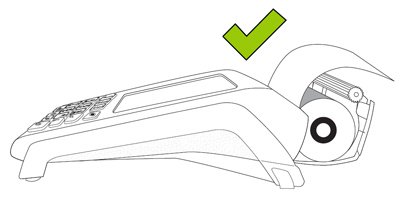

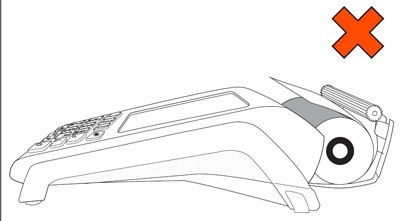

Insert the paper roll into the paper well with the loose end unrolling from the top of the roll toward the back of the terminal. Note: If the paper is installed backward, your printouts will be blank. Unroll enough paper to extend at least one inch (2.5 cm) past the back of the terminal. |
|

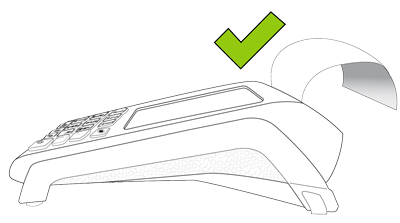

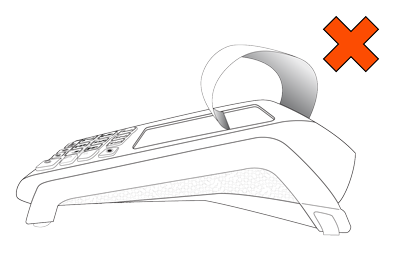

Close the lid, and press down to snap it back into place so that the extended paper is pressed securely against the closed lid and the faceplate. Note: The paper should unroll back over the top of the printer, not unroll over the faceplate. Note: To advance the paper from the printer when the lid is closed, you must press and hold down the paper feed key |
Power on the terminal by pressing and holding the green key until the screen illuminates. Once powered on, proceed to Charging the battery .
Your hardware setup is complete. Go to Software setup.
