Set Up an RS232 Serial Connection

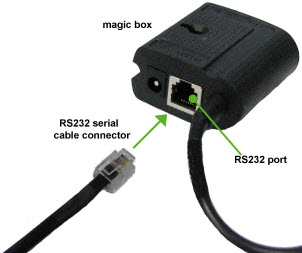

a. Plug the RS232 serial cable's connector (small end) into the terminals' magic box port labelled "RS232".




b. Plug the RS232 serial cable's connector (large end) into a serial port on your ECR.




c.  Continue the overview setup procedure at step 2.
