Moneris V400m wireless terminal

Use this long-range wireless all-in-one terminal and PINpad to process transactions virtually anywhere with cellular coverage. Both you and your customer will enter information and respond to prompts on the terminal. When directed on screen, pass the terminal to the customer. When the customer has finished, they will pass the terminal back to you as directed on screen. Respond to the prompts to complete the transaction.

Terminal keys and hardware



V400m

Label

Terminal key or hardware

Function

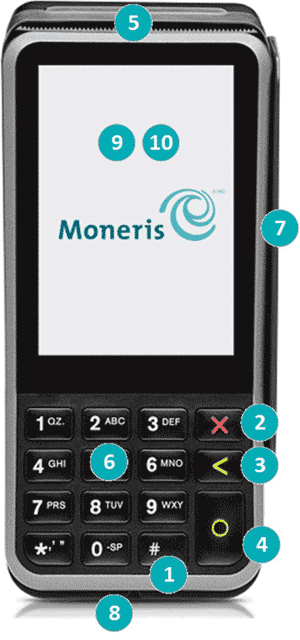

V400m terminal with numbered labels

1

Pound key

Go to the Main menu.

2

Red key

Cancel a transaction or function.

3

Yellow key

Delete one or more characters in a data field.

4

Green key

Accept or submit data.

Say OK to a menu selection.

5

Printer

Print receipts and reports.

6

Keypad

Enter numerical data.

To enter a period or other punctuation, use the punctuation key

7

Magnetic stripe reader

Read card information when a card is swiped.

8

Chip reader

Read card information when a  chip card is inserted.

9

Display screen

Displays information.

10

Contactless reader (internal)

Read card information when a card is tapped.
