Dual communication settings (4G + Wi-Fi)

The Communication Setup screen allows you set up, view, and modify your wireless communication settings. You can choose cellular (4G) or Wi-Fi or both. When both are enabled, the terminal connects to the network with the strongest signal. For more information, refer to Wireless communication indicators.



1.      From the Main menu, tap Settings > Communication > Communication Setup.

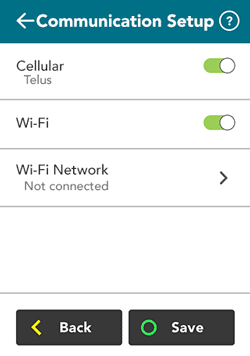

Communication setup showing cellular and wifi enabled

2.      Tap the Cellular toggle to enable or disable cellular communication.

When cellular communication is enabled, the terminal communicates with Moneris from any location where 4G (or 3G ) service is available.  The name of the cellular network (for example, Telus) appears below "Cellular".

If you choose to disable cellular communication, you must enable Wi-Fi in order to communicate with Moneris (see the next step).

3.      Tap the Wi-Fi toggle to enable or disable Wi-Fi communication.

Note:      If you disable Wi-Fi, the terminal will remember the Wi-Fi networks you have set up.  You will not have to set them up again.

4.      When Wi-Fi communication is enabled, you can:

§        Set up a Wi-Fi network either by scanning or by manual entry

§        View and modify saved networks (These are networks to which you have already connected)

5.      Do one of the following:

§        If you made any changes on this screen, tap Save;

§        If you did not make any changes, tap Back.
