Use this handheld, all-in-one terminal and PINpad to process transactions at the point of sale (POS).
Both you and your customer will enter information and respond to prompts on the terminal. When directed on screen, pass the terminal to the customer. When the customer has finished, they will pass the terminal back to you as directed on screen. Respond to the prompts to complete the transaction.

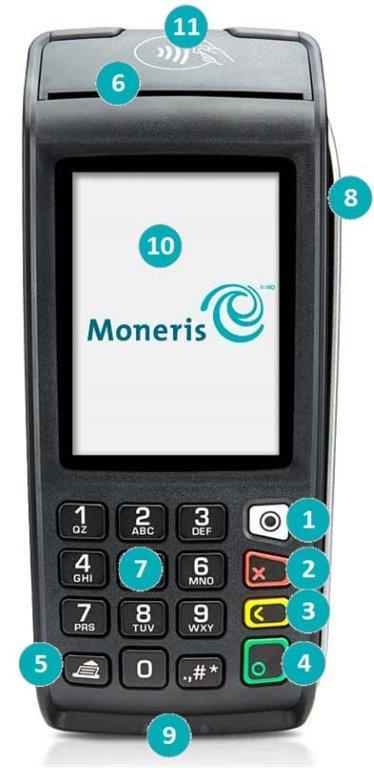

Label |
Terminal key or hardware |
Function |
1 |
Menu
key |
Go to the Main menu. |
2 |
Red
key |
Cancel a transaction or function. |
3 |
Yellow
key |
Delete one or more characters in a data field. |
4 |
Green
key |
Accept or submit data. Say OK to a menu selection. |
5 |
Paper
feed key |
Advance the receipt paper. |
6 |
Printer |
Print receipts and reports. |
7 |
Keypad |
Enter numerical data. To
enter a period or other punctuation, use the punctuation
|
8 |
Magnetic stripe reader |
Read card information when a card is swiped. |
9 |
Chip reader |
Read card information when a chip card is inserted. |
10 |
Display screen |
Displays information. |
11 |
Contactless reader (internal) |
Read card information when a card is tapped. |
