Hardware setup

Connect the Ethernet cable

Ethernet cable in Magic Box

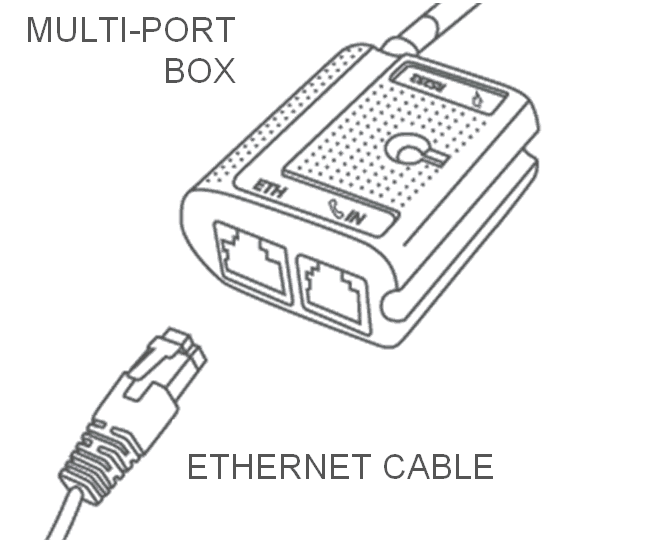

Plug one end of the Ethernet cable into the port labelled ETH on the multi-port box.

Ethernet cable in hub or router

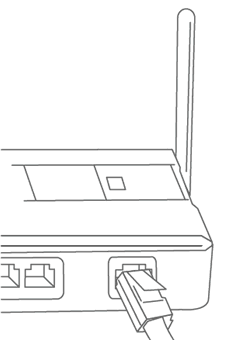

Plug the other end of the Ethernet cable into the router/switch/hub/internal wiring — whatever is applicable to the high-speed Internet service at your location. (If necessary, please refer to the Moneris Ethernet Readiness Checklist available at moneris.com/support-desk5000).

Connect the power supply cable

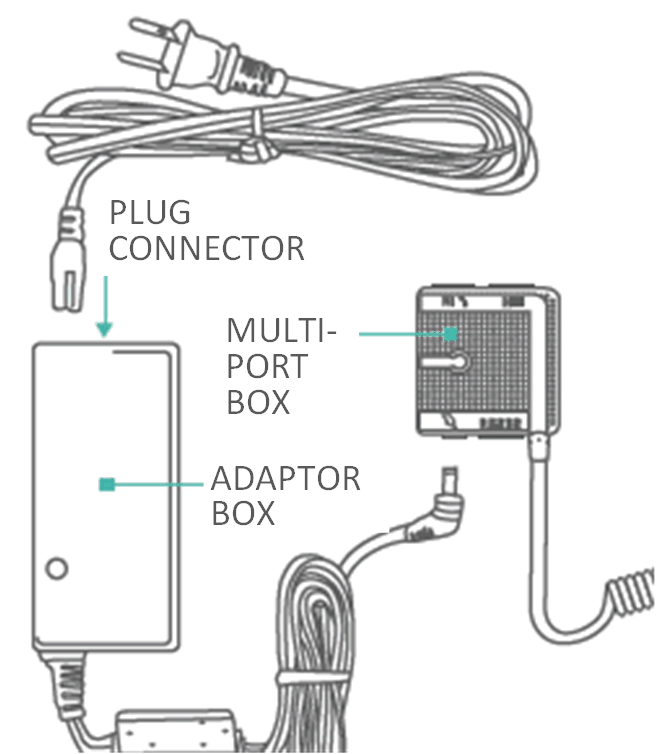

	Insert the plug connector into the adaptor box to form the complete power cable.
	Insert the power cable's barrel connector into the circular port labelled with the power symbol on the multi-port box.

Plug the other end of the power cable into a power source. The terminal will power on.

Recommendations: Always plug the power cable into the power source last to avoid power surges. Use a power bar equipped with surge protection if possible. Do not use the power cable from your existing terminal, as it may damage your new terminal.

You must use the exact power adaptor and cables provided by Moneris to work with your terminal. Failure to do so may affect the operability of, or cause damage to, the equipment.

Remove the protective film (if applicable)

If your terminal has a protective film covering the display screen, peel the film off.

Hint: Peel from the top right to the bottom left corner.

Install the paper roll

Lift the printer latch up, and then pull back to open the lid and expose the paper well.

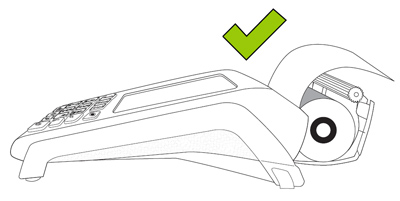

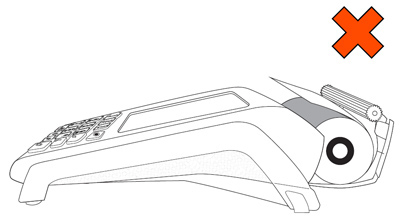

Insert the paper roll into the paper well with the loose end unrolling from the top of the roll toward the back of the terminal.

Note: If the paper is installed backward, your printouts will be blank.

Unroll enough paper to extend at least one inch (2.5 cm) past the back of the terminal.

Close the lid, and press down to snap it back into place so that the extended paper is pressed securely against the closed lid and the faceplate.

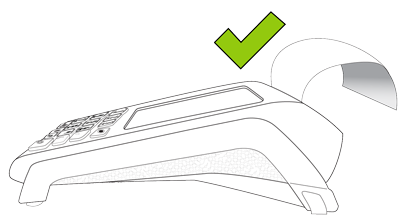

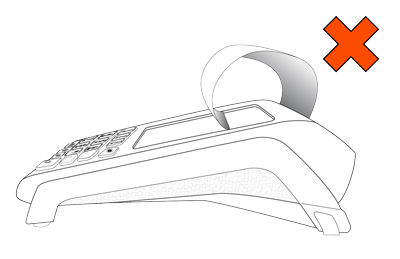

Note: The paper should unroll back over the top of the printer, not unroll over the faceplate.

Note: To advance the paper from the printer when the lid is closed, you must press and hold down the paper feed key when the terminal is powered on. DO NOT attempt to manually advance the paper by pulling it as this will damage the printer.

Your hardware setup is complete. Go to Software setup.
