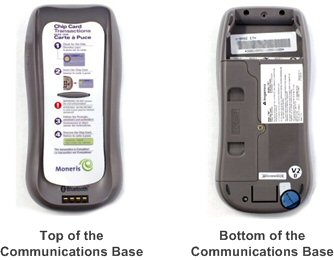

The communications base connects to up to seven (7) terminals via wireless communication and to the Moneris Host via Ethernet and dial.
If you have a number of 8200 handheld terminals, they can communicate with the Moneris Host through one communications base, but each terminal will need a charge-only base to charge the battery when the handheld is not in use.

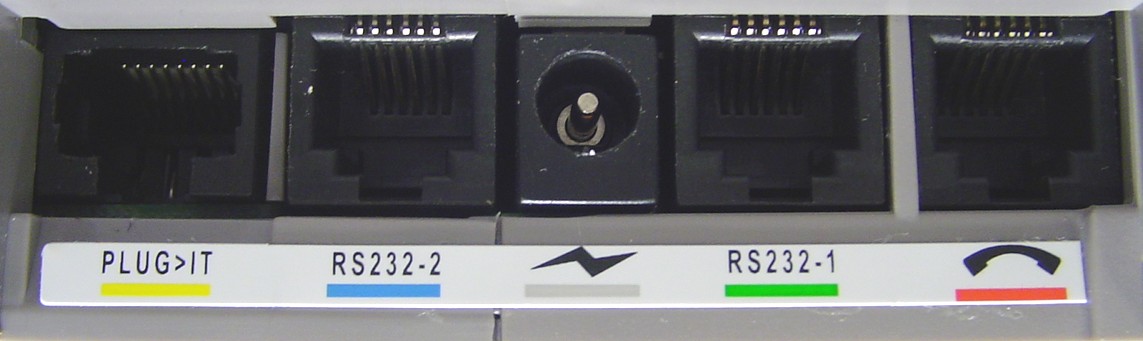

The Ports on the Communications Base
It has a green LED on the front, right corner and 5 connection ports on its back:
|
PLUG>IT |
with a YELLOW bar (for Ethernet Communications) |
|
RS232-2 |
with a BLUE bar (for future use) |
|
|
with a GREY bar (power connection) |
|
RS232-1 |
with a GREEN bar (for future use) |
|
|
with a RED bar (for Dial Communications) |
