The PINpad Cable Connection Protector


The PINpad Cable Connection Protector

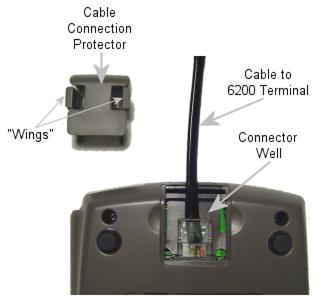

and the back of the PINpad.



To attach the cable connection protector to the back of the PINpad:

  1. Place the protector over the cable on the back of the PINpad with the straight bottom edge of the protector against the straight edge across the bottom of the connector well.

  2. Press the protector into the connector well until the two straight edges are flush.

  3. Lock the protector in place:
    Hold the protector in place and push each ”wing” towards the outside edge of the PINpad (the wings make a clicking noise as they lock).

  4. Tug the top of the protector to ensure it is locked in place.
