The PINpad Cable


The PINpad-to-Terminal Cable

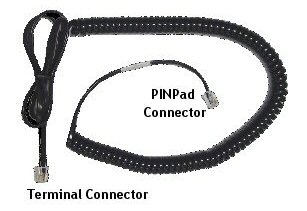

The "PINpad Connector" of the PINpad-to-6200 Cable connects to back of the PINpad.

The "Terminal Connector" on the cable connects to the RS232-1 port (with a GREEN bar) on the base of the HiSpeed 6200 terminal.
