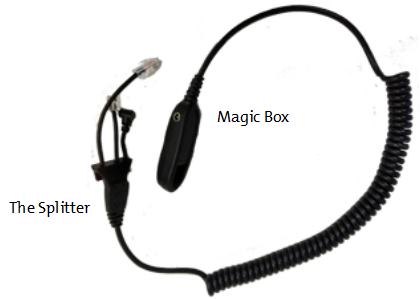

The VX 520 features a convenient all-in-one connection cable that plugs into the underside of the terminal. This all-in-one connection cable is comprised of two distinct ends:
● the Magic Box, which features female connection ports for Power, Dial and Ethernet cables.
● The Splitter, which features male connectors to the Power, Dial and Ethernet ports on the underside of the VX 520 terminal.

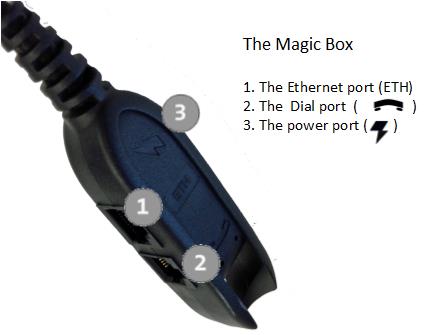

The Magic Box features female connection ports for Power, Dial and Ethernet cables. Refer to the table and images below.
|
Icon on Magic Box |
Connect this cable: |
|
|
Power cable |
|
|
|
|
ETH |

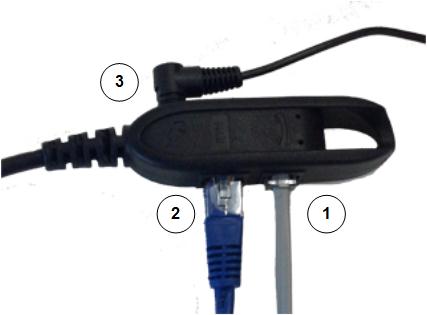

Below is an image of the cables connected to the Magic Box. The circled numbers represent the order in which the cables should be connected to the box.

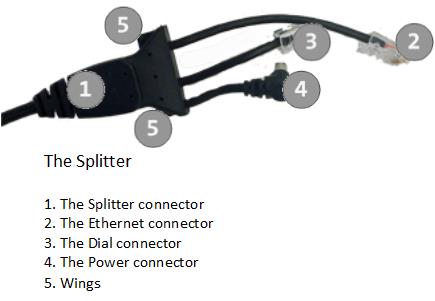

The Splitter features male connector ports for Power, Dial and Ethernet cables. Refer to the image below.
